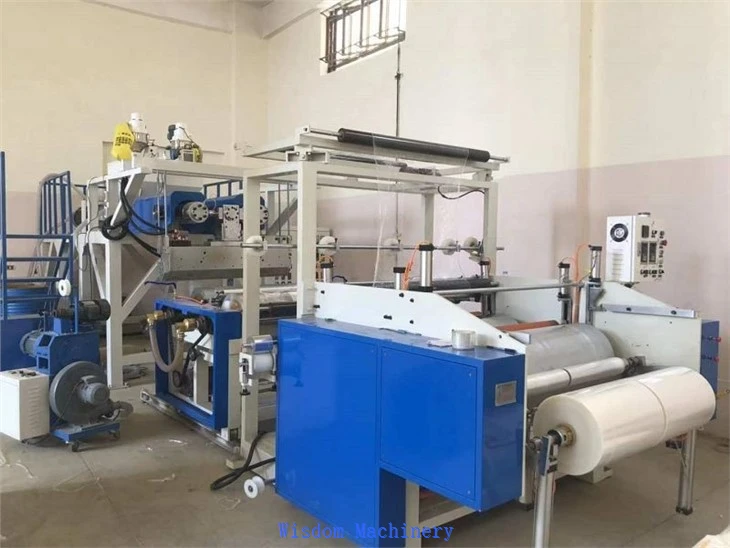

3 Layer Stretch Film Making Machine
INTRODUCTION
3 layer stretch film making machine are specialized equipment designed to produce high-quality stretch film used for wrapping and securing various products during transportation or storage. These machines are typically used in industrial settings and are capable of producing large volumes of film.
Some features and benefits of stretch film making machines include:

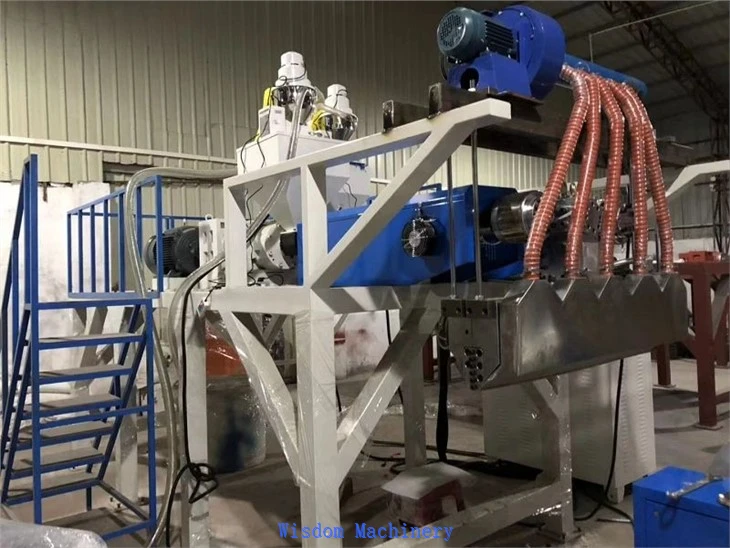

Extrusion system: The heart of the machine is the extrusion system which melts and extrudes the plastic resin into a thin film. This system is designed to produce consistent film thickness, strength, and clarity.
High output: Stretch film making machines are designed to produce high volumes of film per hour, making them ideal for large-scale production.
Automatic control: These machines have advanced control systems that automatically adjust the speed, temperature, and tension of the film to ensure consistent quality.
Versatility: 3 layer stretch film making machine are capable of producing a wide range of film types, including clear or colored film, with or without printing, and with varying degrees of stretchability.
Energy-efficient: Modern 3 layer stretch film making machine are designed with energy-efficient motors and control systems that reduce energy consumption and operating costs.
Easy maintenance: These machines are designed for easy maintenance and cleaning, with accessible components and user-friendly interfaces.
Overall, 3 layer stretch film making machine are essential equipment for businesses that require high-quality stretch film for packaging and shipping their products. They offer significant advantages in terms of efficiency, quality, and cost-effectiveness.
|
MODEL: |
WS-55/75/55-1250MM |
WS-65/90/65-1850MM |
|
Width of film: |
1250mm |
1850mm |
|
Thickness of film: |
0.012-0.05mm |
0.012-0.05mm |
|
line speed of machinery |
150m/min |
180m/min |
|
max extrusion capacity |
160kgs/h |
220kgs/h |
|
max rewind diameter |
400mm |
400mm |
|
screw diameter |
55/75/55mm |
65/95/65mm |
|
L/D ratio of screw |
30:1 |
30:1 |
|
Motor power of main machine |
15/22/15kw |
22/45/22kw |
|
Overall dimensions (LxWxH) |
8.5*3.5*3.5m |
13*3.4*3.5m |
|
Total weight: |
9T |
15T |
OUR SERVICE
Strickly starting production of each machine as your requiments.
inspection the every process and every parts of the machine productions strickly.
testing the machine and offer the pictures or video before the shipments by professional QC team.
one year wearing parts of the machine for guarantee.
OUR ADVANTAGE
We have been engaged in plastic machine industry for more than 10 years.
we have complete production technology and management.
Packing:
STANDARD EXPORT PACKAGE
FAQ
1) How can I place order?
A: You can contact us by email about your order details.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Paypal, Western Union are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 15-30 days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4) How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5) How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure
