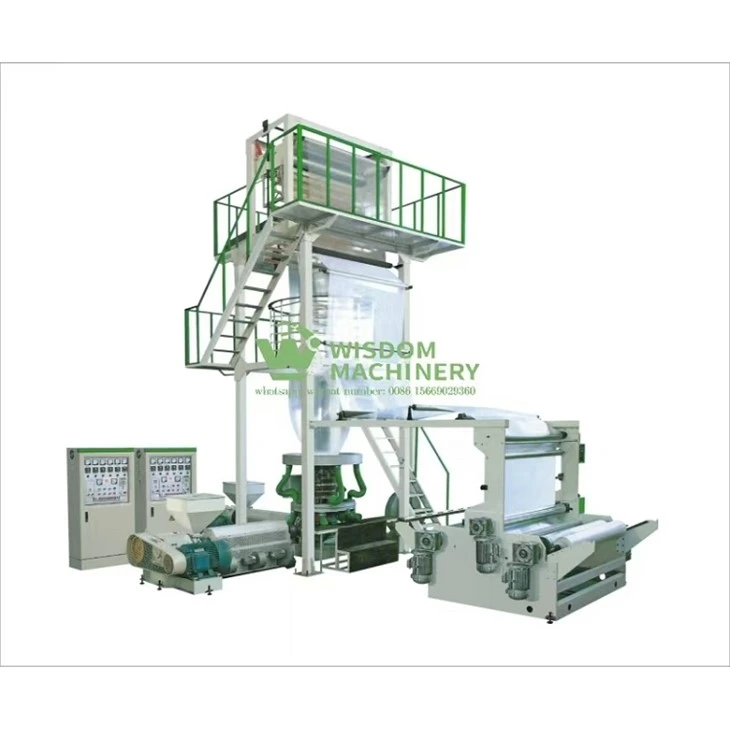

Monolayer Blown Film Extrusion Machine

Name: China Customized Monolayer Blown Film Extrusion Machine Manufacturers Suppliers Factory - Wisdom Machinery
Brand: WISDOM
SKU: 203577946

Send Inquiry

Product Introduction

Product Details

Monolayer blown film extrusion machine is a type of equipment that is used to produce blown film products. The machine utilizes a thermoplastic polymer resin that is melted and then inflated to form a tube. This tube is then cooled down and flattened to produce a thin film. The monolayer blown film extrusion machine is popular in the plastics industry because of its low production costs and efficiency.

The monolayer blown film extrusion machine is composed of several parts, including an extruder, a die head, an air ring, a cooling tower, and a winding unit. The extruder is the main component that melts and homogenizes the resin. The molten resin is then forced through the die head to form a tube. The air ring helps to cool the film as it is inflated. The cooling tower further cools the film before it is wound onto a roll by the winding unit.

The monolayer blown film extrusion machine is used to produce a variety of film products, such as packaging films, agricultural films, construction films, and food films. The machine is versatile and can be adjusted to produce different film thicknesses and widths.

In conclusion, the monolayer blown film extrusion machine is an essential equipment in the plastics industry that is widely used for producing blown film products. Its efficiency and versatility make it a popular choice among manufacturers.

Specifications:

Model	45-500	50-700	55-900	60-1100	65-1350	75-1700
Max.Layflat Width(mm)	400	600	600	1000	1200	1500
Film Thickness(mm)	0.005-0.08	0.005-0.08	0.005-0.08	0.005-0.08	0.005-0.08	0.005-0.08
Max.Output(kg/h)	20	30	50	60	90	120
Raw Material	Biodegradable Material, PBAT PLA Starch Resin
Screw Diameter(mm)	Φ45	Φ50	Φ55	Φ60	Φ65	Φ75
Screw L/D Ratio L/d	30:1	30:1	30:1	30:1	30:1	30:1
Extruder Driving Power(kw)	7.5	11	15	18.5	22	37
Take-off Wond-up Speed	10-60m/min	10-60m/min	10-60m/min	10-80m/min	10-80m/min	10-80m/min
Total Power(kw)	≈22	≈25	≈32	≈45	≈50	≈65
Overall Dimensions(L×W×H)M	2.6×1.5×4.5	3.2×1.7×4.5	4.2×1.9×5	4.8×2.1×6	5.8×2.4×6	7×2.7×7.5
Weight(T)	≈1.2	≈1.5	≈2	≈2.5	≈3.2	≈7.5

FAQ

Guest: Do you accept special design?

WISDOM: Yes, we accept design and manufacture products according to client's special requirements.

Guest: Can you arrange engineer to come to us?

WISDOM: Usually we will arrange video online teaching, also we can send engineer to come.

Guest: How long will you take before shipping?

WISDOM:Normally it will take 25 days after we receive the payment. It is depends on the products that you need, but we guarantee for shipping as fast as we could.

Guest: How can I go to your factory

WISDOM: We are in ruian city Zhejiang China. If you want to come, you can take air to Wenzhou air port, Or take train to RuiAn station.
