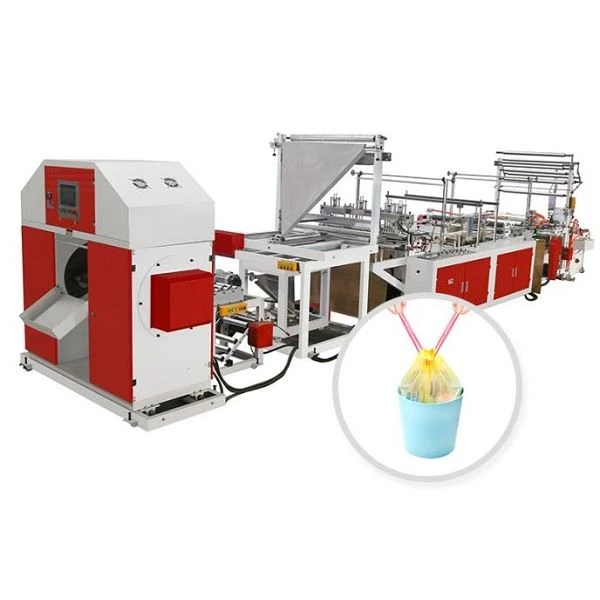

WSR800 ROLL GARBAGE BAG MAKING MACHINE WITH ROPE SERIESE

This machine is an ideal equipment for producing various plastic flexible packaging such as continuous roll rope garbage bags and flat mouth continuous roll garbage bags. Suitable for making LDPE, HDPE materials and other continuous roll rope (drawstring) garbage bags, flat mouth continuous roll garbage bags, etc.

Send Inquiry

Product Introduction

INTRODUCTION

Performance and features:

purpose

Performance and features:

1. This machine is manufactured by our company using advanced technology from both domestic and international sources.

2. Adopting computer control and servo motor structure model.

3. It has photoelectric automatic tracking, white bag and color bag conversion functions, microcomputer fixed length, automatic counting, arrival alarm, and automatic temperature control.

4. Equipped with automatic breaking, punching (piercing) holes, semi-circular holes, threading ropes, edge sealing, bottom sealing, point breaking, folding, continuous rolling and splitting mechanical devices.

5. Adopting a copper knife point tooth sealing structure, the sealing and point breaking are synchronized, and the bottom sealing is firm and beautiful.

6. This machine can process continuous roll through garbage bags, and has the functions of continuous roll flat pockets and flat pockets.

7. The whole machine adopts a one-stop production line with a high degree of automation, making it an ideal equipment for making garbage bags and an advanced equipment to replace imported similar products

2, Technical parameters:

Maximum width of finished bag (left and right width of bag)	600mm
Maximum depth of finished bag (from bag opening to bag bottom)	650mm
Effective cutting thickness:	0.01mm-0.03mm
Mechanical speed:	50-130pcs/min
Cutting accuracy:	±0.5mm
Whole machine power:	20KW
Whole machine weight:	3000KG
External dimensions:	10400mm×1700mm×1800mm

Details of the machine:

No.	Name	Picture	Details
1	Unwinder		The machine raw material feeding rack is partially loaded with cylinders, and with EPC and auto tension controller
2	feeding motor		We use an independent feeding AC motor and feed in the form of a swing arm
3	Tube material breaking device		The tube material has a broken opening, making it easy to insert plastic ropes
4	Half circle hole puncher		Half circle punching, convenient for pulling and pulling ropes
5	exhaust vent		Exhaust hole, the rope will not inflate when pulled
6	Rope entry device		We use an independent rope entry device, which eliminates the need for manual labor and saves costs
7	Sealing knife		Convenient to heat seal the collar of the bag with a sealing line
8	Static eliminator		Eliminate static electricity to make the rolled bag smoother
9	Machine working panel		The machine control panel display screen we use is very easy to operate

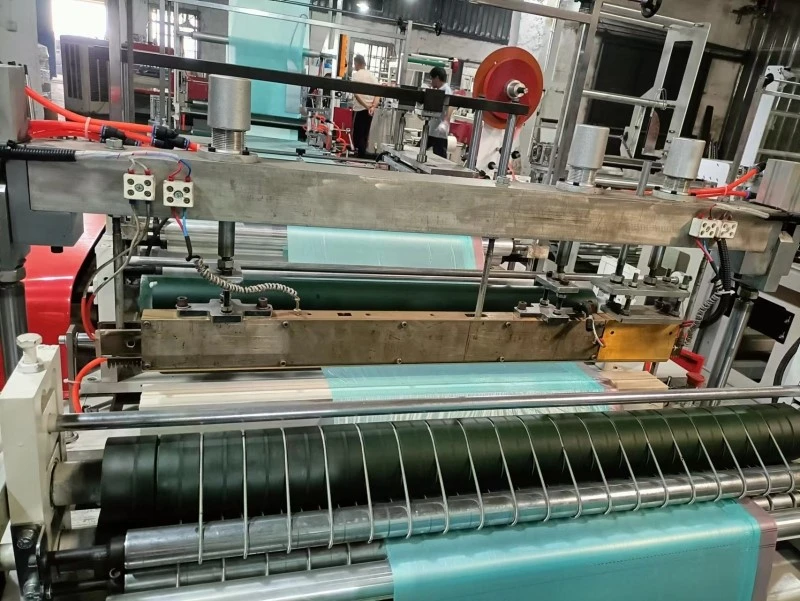

10	One piece hot knife with broken teeth		The integrated point breaking teeth hot knife facilitates the hot pressing of plastic film and efficient bag making. The toothed knife is wear-resistant and convenient for tearing bags.

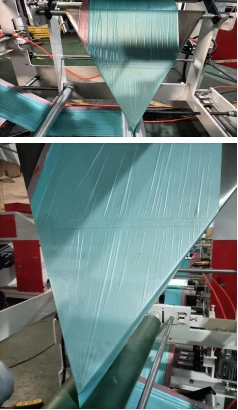

11	Folding system		Fold the plastic garbage bag in half during the feeding process for easy winding
12	electric box		Our electrical box uses Chint Electric, which is very clean and tidy
13	Machine motor		We use independent motors that are easy to install and maintain

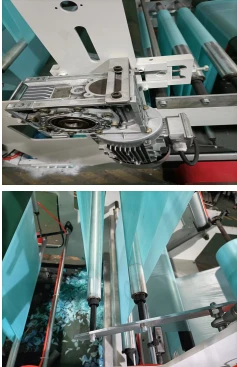

14	Reducer		We use independent reducers, which are easy to install and maintain
15	Edge correction machine		Stabilize the lateral position of the material and detect positional deviations

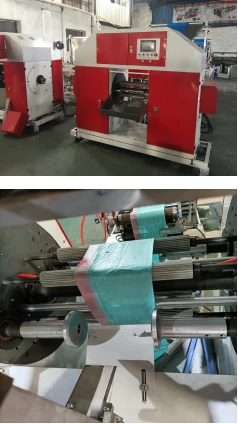

16	Automatic winding device		We use an independent automatic roll changing and winding device, which effectively saves labor costs, and the garbage bags that are wound up are neat and beautiful
