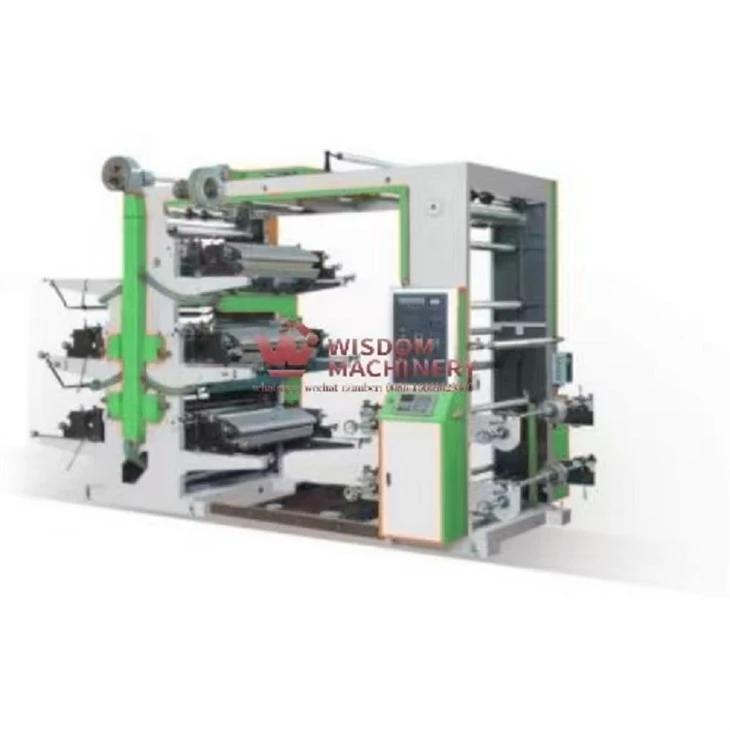

Small Flexo Printing Machine

Small Flexo Printing Machine

A small flexo printing machine is a type of printing press that uses flexible printing plates to produce high-quality print on various materials such as paper, plastic, and fabric.
Send Inquiry
Product Introduction
Product   Details



A small flexo printing machine is a type of printing press that uses flexible printing plates to produce high-quality print on various materials such as paper, plastic, and fabric. This type of printing machine is ideal for small to medium-sized businesses as it is compact, user-friendly, and affordable. Small flexo printing machines can be used for printing labels, packaging materials, and promotional items. They can also be customized to meet specific printing needs, such as using specialized inks, adding extra colors, or incorporating special effects such as glossy or matte finishes. With the rise in demand for efficient and economical printing solutions, small flexo printing machines are becoming increasingly popular among businesses of all sizes.



Model

2600

2800

21000

21200

Max. Effective Printing Width

560mm

760mm

960mm

1160mm

Max web width

600mm

800mm

1000mm

1200mm

Max printing speed

60m/per mins

60m/per mins

60m/per mins

60m/per mins

Max. Mechanical Speed

70m/per mins

70m/per mins

70m/per mins

70m/per mins

Max. Diameter of Roll Material

φ450mm

φ450mm

φ450mm

φ450mm

Internal Diameter of Roll Core

φ76mm

φ76mm

φ76mm

φ76mm

Range of Repeat Printing Length

191-1200mm

191-1200mm

191-1200mm

191-1200mm

Accuracy of Registration

±0.25mm

±0.25mm

±0.25mm

±0.25mm

Plate Thickness

(Both side adhesive included)

2.38mm

2.38mm

2.38mm

2.38mm

Heating Power

4kw

6kw

8kw

10kw

Total power:

8kw

10kw

12kw

12kw

Weight of machine

1800kg

2000kgs

2200kgs

2400kgs

Overall Dimension

2.5m*1.7m*2.2m

2.5m*1.9m*2.2m

2.5m*2.1m*2.2m

2.5m*2.3m*2.2m



FAQ



Q1: What about your main market?

A1: Our products be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.



Q2: How does your factory do regarding quality control?

A2: Quality is the most important principle. GREAT WALL people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.



Q3:What about warranty and do the engineers available to overseas?

A3: One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.



Q4:What about the service after sale?

A4: One you have bought our machine, you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12hours and help you to slove the problem.
